Getting the spare tire and tools

Getting the spare tire and tools Getting the spare tire and tools

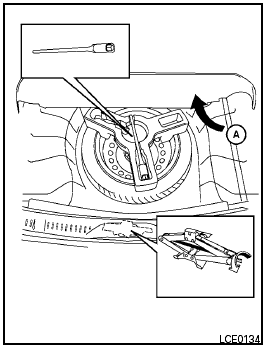

1. Open the trunk and remove the trunk divider (if so equipped) and the cargo net (if so equipped). Lift the trunk floor carpeting and spare tire cover A . Remove the jack and the spare tire as indicated.

2. To remove the jack, turn the jack screw

2. To remove the jack, turn the jack screw counterclockwise and lift out.
