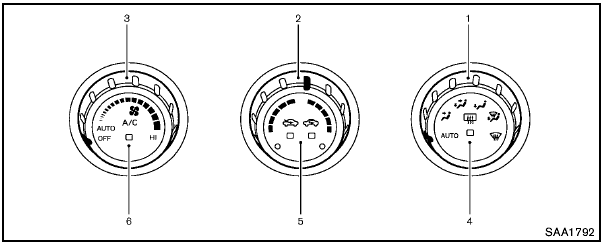

Automatic air conditioner

1. Air flow control dial

1. Air flow control dial
2. Temperature control dial
3. Fan speed control dial
4. Rear window defroster button (See “Rear window and outside mirror defroster switch” in the “2. Instruments and controls” section.)
5. Outside air circulation recirculation button/Air recirculation button 6. A/C (Air Conditioner) button
6. A/C (Air Conditioner) button
