How to use the INFO button

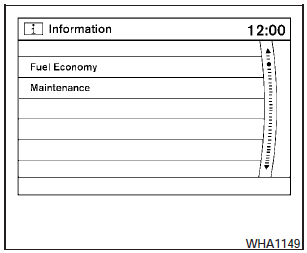

Press the INFO button. The display screen shows vehicle information for your convenience.
The information shown on the screen should be a guide to determine the condition of the vehicle.
See the following for details.

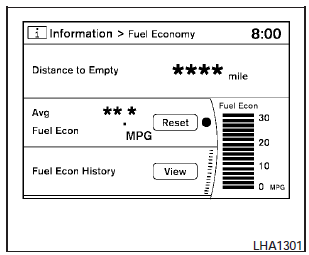

Fuel economy
Press the INFO button, then select the Fuel Economy key using the NISSAN controller to display Average Fuel Economy, Distance to Empty and Fuel Economy History.
Distance to empty (MI or km)
The Distance to Empty (DTE) mode provides you with an estimation of the distance that can be driven before refueling. The DTE is constantly calculated based on the amount of fuel in the fuel tank and the actual fuel consumption. The display is updated every 30 seconds. When the fuel level is low, the DTE display will change to (*).
NOTE:
- If the amount of fuel added while the ignition switch is OFF is small, the display just before the ignition switch is placed in the OFF position may continue to be displayed.
- When driving uphill or rounding curves, the fuel in the tank shifts, which may momentarily change the display.
Average fuel economy (MPG or L/100 km)
The Average Fuel Economy is calculated based on fuel consumption since the last reset. The display is updated every 30 seconds and 1/3 mi (500 m). After a reset or connecting the battery cables, the display might show (**.*).
Resetting fuel economy
The average fuel economy calculation can be reset to 0. Press the INFO button and select the Fuel Economy key, then select the Reset key using the NISSAN controller.

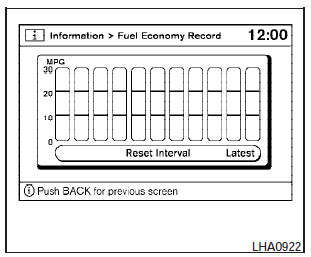

Fuel economy record
Press the INFO button, then select the Fuel Economy key, then select the View key using the NISSAN controller.
The average fuel consumption history will be displayed in a graph form along with the average fuel for the previous reset-to-reset period.
Maintenance items

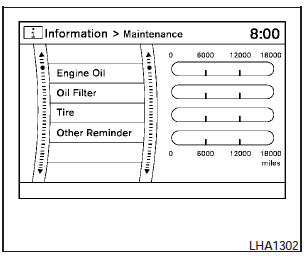

Press the INFO button and select the Maintenance key using the NISSAN controller; the maintenance information will be displayed on the screen.

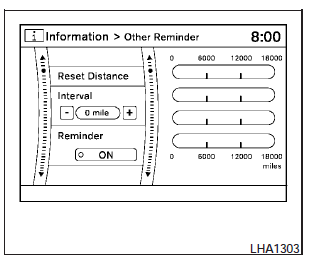

Changing the maintenance interval
Select one of the Reminder keys (Engine Oil, Oil Filter, Tire or Other Reminder) using the NISSAN controller to display the screen to change the maintenance interval.
Select the Interval key using the NISSAN controller.
Use the NISSAN controller to change the maintenance interval. To accept the changes, press the BACK button.
Resetting the maintenance interval
To reset the reminder schedule (distance) to 0 mi (km), select the Reset Distance key using the NISSAN controller.
Displaying the maintenance notice reminder
Select the Interval Reminder ON key to display the MAINTENANCE INFORMATION automatically at the set maintenance interval. The indicator light will illuminate when it is ON.
The MAINTENANCE NOTICE screen will be automatically displayed as shown when both of the following conditions are met:
- The vehicle is driven the set distance and the ignition switch is placed in the OFF position.
- The ignition switch is placed in the ON position the next time the vehicle will be driven.
To return to the previous display after the MAINTENANCE NOTICE screen is displayed, press the BACK button.
The MAINTENANCE NOTICE screen displays each time the key is turned ON until one of the following conditions are met:
- The Reset key is selected.
- The Interval Reminder ON key is set to OFF (indicator light not illuminated).
- The maintenance interval is set again.
