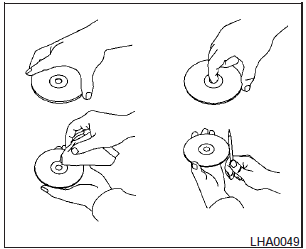

CD care and cleaning
-Handle a CD by its edges. Do not bend the disc. Never touch the surface of the disc.
- Always place the discs in the storage case when they are not being used.
- To clean a disc, wipe the surface from the center to the outer edge using a clean, soft cloth. Do not wipe the disc using a circular motion.
- Do not use a conventional record cleaner or alcohol intended for industrial use.
- A new disc may be rough on the inner and outer edges. Remove the rough edges by rubbing the inner and outer edges with the side of a pen or pencil as illustrated.

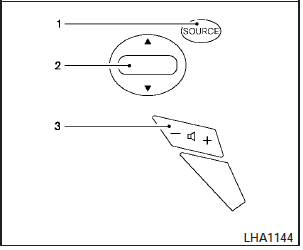

Type A
1. Power on and SOURCE select switch.
2. Tuning switch.
3. Volume control switch.

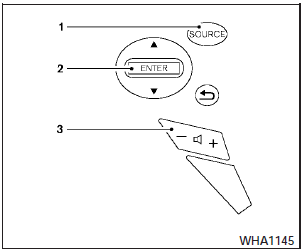

Type B
1. Power on and SOURCE select switch.
2. Menu control switch/ENTER button.
3. Volume control switch.
See also:
Control panel buttons ó color screen with Navigation System (if so equipped)
1. ZOOM OUT button*.
2. STATUS button.
3. DEST button*.
4. ROUTE button*.
5. NISSAN controller.
6. INFO button.
7. PHONE button**.
8. + (brightness control) button.
9. OFF brightness control ...
Console box
Console box
To open the console boxes, push up the knob
A and pull up the lid.
To close, push the lid down until latched.
To remove the inner box (if so equipped) for
cleaning or storing a la ...
Audio main operation
Head unit:
The auto loudness circuit enhances the low and
high frequency ranges automatically in both
radio reception and CD playback.
PWR/Volume control:
Place the ignition switch in the ACC o ...
