Front power seat adjustment

Coupe

Coupe

Operating tips

WARNING

Before driving the vehicle, return the seatback to an upright seating position after manually releasing it. Also, make sure the seat is locked in place. Failure to do so may cause the seat to move in a collision or sudden stop. This may result in damage to the seat or personal injury.

CAUTION

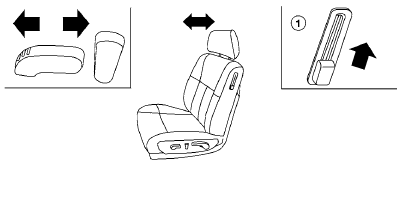

● Do not operate the power recline switch when the seatback has been manually released using the upper seatback release lever 1 . Doing so can damage the seat.
● Do not pull on the upper seatback release lever or the trim to return the seatback to a normal seating position. Doing so may damage the seat.

● The power seat motor has an auto-reset overload protection circuit. If the motor stops during operation, wait 30 seconds, then reactivate the switch.
● Do not operate the power seat switch for a long period of time when the engine is off. This will discharge the battery.
● Pull up on the upper seatback release lever to release the seatback only. Push the seatback forward to allow for access to items behind the front seat. Push the seatback to the rear of the vehicle to return the seatback to the upright and locked position. The upper seatback release lever does not need to be used.

Sedan

Sedan

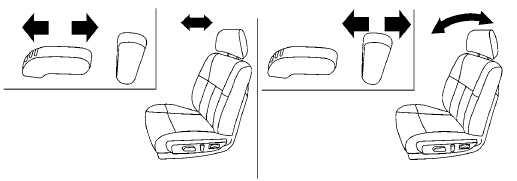

Forward and backward

Moving the switch forward or backward will slide the seat forward or backward to the desired position.

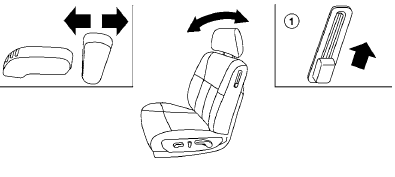

Reclining

Move the recline switch backward until the desired angle is obtained. To bring the seatback forward again, move the switch forward and move your body forward. The seatback will move forward.

The reclining feature allows adjustment of the seatback for occupants of different sizes for added comfort and to help obtain proper seat belt fit (see “Precautions on seat belt usage” later in this section). Also, the seatback can be reclined to allow occupants to rest when the vehicle is stopped and the transmission is in P (Park) or N (Neutral) position with the parking brake fully applied.

Coupe shown, Sedan similar

Coupe shown, Sedan similar

Seat lifter (if so equipped for driver’s seat)

Pull the lever up or push down to adjust the angle and height of the seat cushion.

Type A

Type A

Type B

Type B

Lumbar support (if so equipped for driver’s seat)

The lumbar support feature provides lower back support to the driver. Push the switch (Type A) forward or backward or move the lever (Type B) up or down to adjust the seat lumbar area.

Entry to the rear seat from outside of

Entry to the rear seat from outside of the vehicle (if so equipped for Coupe models)

Pull the seat recliner lever to the uppermost position folding the seatback forward, releasing the seat track.

Slide the entire seat forward for access to the rear seat.

To return the seat to a locked position: Push the upper seatback rearward until the seatback and track are locked.

Operating tips:

● The seatback and track will not lock until the seatback is returned rearward.
● The seatback will return to the first locking notch when using the seat recliner lever.

CAUTION

● When returning the seat to its original position, confirm that the seat and seatback are locked properly.
● Be careful not to pinch your hand or foot or bump your head when operating the walk-in seat.

Exiting from the rear seat on the

Exiting from the rear seat on the passenger’s side, using the upper seatback release lever (if so equipped for Coupe models)

Pull the upper seatback release lever 1 to the uppermost position, folding the seatback forward 2 , releasing the seat track.

Slide the entire seat forward to exit from the rear seat.

To return the seat to a locked position:

Push the upper seatback rearward until the seatback and track are locked.

Operating tips:

● The seatback and track will not lock until the seat back is returned rearward.

● The seatback will return to an upright seating position if the upper seatback release lever is pulled to the uppermost position.

CAUTION

● When returning the seat to its original position, confirm that the seat and seatback are locked properly.

● Be careful not to pinch your hand or foot or bump your head when operating the walk-in seat.
