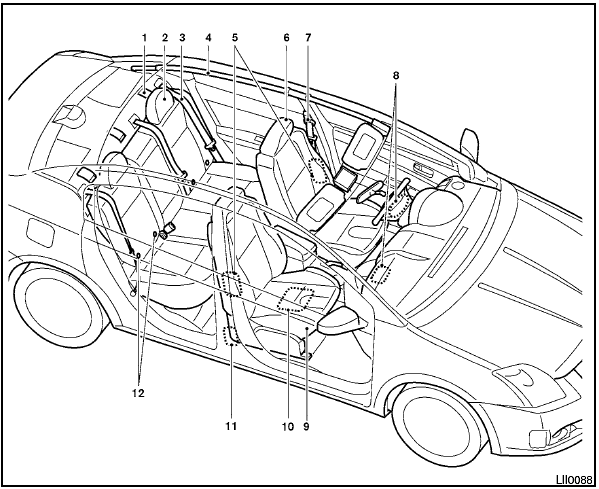

Air bags, seat belts and child restraints
1. Top tether anchor
2. Rear headrest
3. Rear seat belts
4. Roof-mounted curtain side-impact
supplemental air bag
5. Front seat-mounted side-impact
supplemental air bag
6. Front-seat Active Head Restraint
7. Front seat belts
8. Supplemental front-impact air bags
9. Seats
10. Occupant classification sensor
(pressure sensor)
11. Seat belt with pretensioner
12. LATCH (Lower Anchors and Tethers for
CHildren)
