Vents

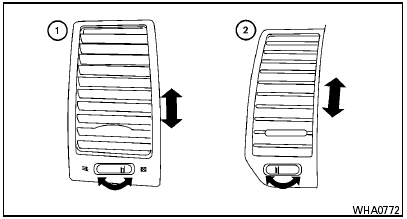

Adjust air flow direction for the driver’s and passenger’s side 1 , and center 2 ventilators by moving the ventilator slide and/or ventilator assemblies.
Open or close the ventilators 1 by using the dial.
Move the dial toward the
to open
the ventilators
or toward the
to close them.
