Replacing

Replace the wiper blades if they are worn.

1. Lift the wiper arm away from the windshield.

2 Push the release tab, then move the wiper blade down the wiper arm to remove.

3 Remove the wiper blade.

4. Insert the new wiper blade onto the wiper arm until it clicks into place.

5. Rotate wiper blade so the dimple is in the groove.

● After wiper blade replacement, return the wiper arm to its original position; otherwise it may be damaged when the hood is opened.

● Make sure the wiper blades contact the glass; otherwise the arms may be damaged from wind pressure.

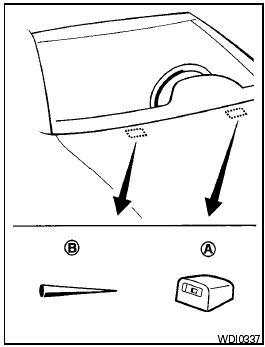

If you wax the surface of the hood, be careful not to let wax get into the washer nozzle A . This may cause clogging or improper windshield-washer operation. If wax gets into the nozzle, remove it with a needle or small pin B .
