Passenger compartment

Passenger compartment
Passenger compartment

Never use a fuse of a higher or lower

Never use a fuse of a higher or lower amperage rating than specified on the fuse box cover. This could damage the electrical system or cause a fire.

If any electrical equipment does not operate, check for an open fuse.

1. Be sure the ignition switch and the headlight switch are OFF.

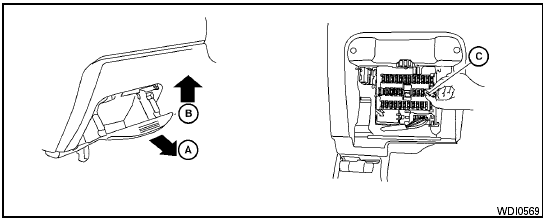

2. Open the storage bin A .

3. Pull the storage bin upward and out to remove B . A fuse guide is on the storage bin.

4. Remove the fuse with the fuse puller C . The fuse puller is located in the center of the fuse block.

5. If the fuse is open, replace it with an equivalent good fuse.

6. If a new fuse also opens, have the electrical system checked and repaired by a NISSAN dealer.

7. Install the storage bin.

Extended storage switch
Extended storage switch

If any electrical equipment does not operate, remove the extended storage switch and check for an open fuse.

NOTE:
The extended storage switch is used for long term vehicle storage. Even if the extended storage switch is broken it is not necessary to replace it. Replace only the open fuse in the switch with a new fuse.

How to replace the extended storage switch.

1. To remove the extended storage switch, be sure the ignition switch is in the OFF or LOCK position.

2. Be sure the headlight switch is in the OFF position.

3. Remove the fuse box cover.

4. Pinch the locking tabs 1 found on each side of the storage switch.

5. Pull the storage switch straight out from the fuse box 2 .
