Instrument panel

Instrument panel

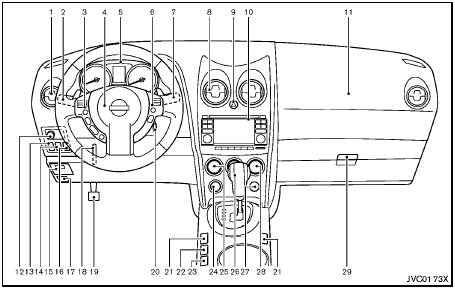

Instrument panel

1. Side ventilator
2. Headlight, fog light* and turn signal switch
3. Steering-wheel-mounted controls (left side)*
— Audio control*
— Bluetooth® Hands-Free Phone System control*
4. Steering wheel
— Horn
— Driver supplemental air bag
— Electric power steering system
5. Meters and gauges
6. Steering-wheel-mounted controls (right side)
— Cruise control switches
7. Wiper and washer switch
8. Center ventilator
9. Hazard warning flasher switch
10. Audio system/Navigation system**
— Clock
— Rear view monitor*
— Around viewTM monitor*
11. Front passenger supplemental air bag
12. Outside remote mirror control switch
13. Headlight aiming control*
14. All-Wheel Drive (AWD) LOCK switch*
15. Fuse box cover
16. Vehicle Dynamic Control (VDC) OFF switch
17. Hood release handle
18. Tilting steering wheel lever
19. Parking brake
20. Ignition switch
21. Heated seat switch*
22. “Camera” Around viewTM monitor display switch*
23. Sport mode switch
24. Power outlet
25. Heater/air conditioner control
26. Selector lever
27. Front passenger air bag status light
28. Rear window and outside mirror* defroster switch
29. Glove box

*: if so equipped

**: See a separate Navigation System Owner’s Manual (if so equipped)
