Meters and gauges

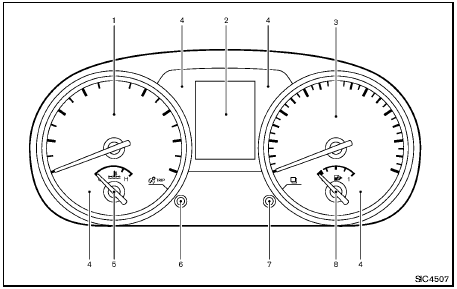

Meters and gauges
1. Tachometer
2. Vehicle information display
3. Speedometer
4. Warning/indicator lights
5. Engine coolant temperature gauge
6.
switch (twin trip odometer
control and brightness control)
7.
switch (settings control and
trip computer control)
8. Fuel gauge
*: if so equipped
