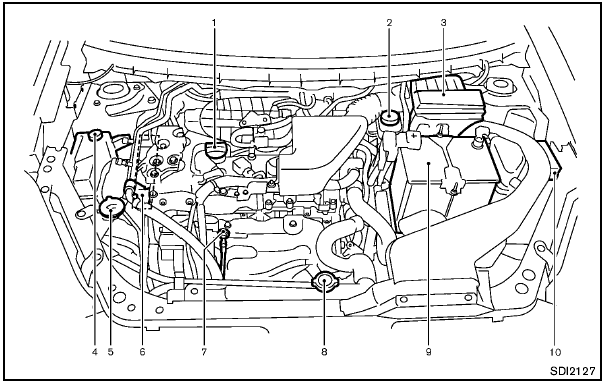

QR25DE engine

1. Engine oil filler cap

1. Engine oil filler cap
2. Brake fluid reservoir
3. Air cleaner
4. Engine coolant reservoir
5. Window washer fluid reservoir
6. Drive belt location
7. Engine oil dipstick
8. Radiator filler cap
9. Battery
10. Fuse/fusible link holder

Removing the air duct
Removing the air duct

Remove the air duct A if necessary.

1. Remove the clips B with a suitable tool.

2. Pull the air duct upward 1 and then sideways 2 .

Install the air duct securely after any inspection or maintenance work is performed.
