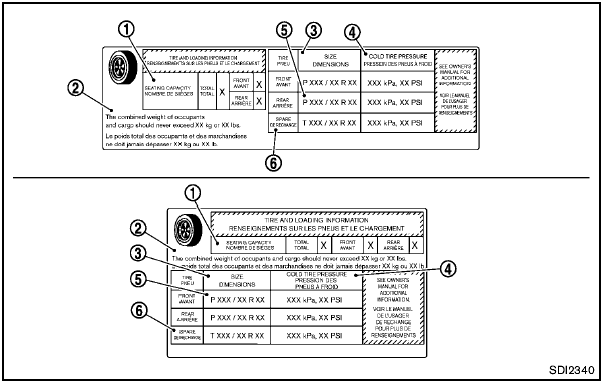

Tire and Loading Information label

1 Seating capacity: The maximum number

1 Seating capacity: The maximum number of occupants that can be seated in the vehicle.

2 Vehicle load limit: See “Vehicle loading information” in the “9. Technical and consumer information” section.

3 Original size: The size of the tires originally installed on the vehicle at the factory.

4 Cold tire pressure: Inflate the tires to this pressure when the tires are cold.

Tires are considered COLD after the vehicle has been parked for 3 or more hours, or driven less than 1 mile (1.6 km) at moderate speeds. The recommended cold tire inflation is set by the manufacturer to provide the best balance of tire wear, vehicle handling, driveability, tire noise, etc., up to the vehicle’s GVWR.

5 Tire size — see “Tire labeling” later in this section.

6 Spare tire size or compact spare tire size (if so equipped)
