Air bags, seat belts and child restraints
Air bags, seat belts and child restraints

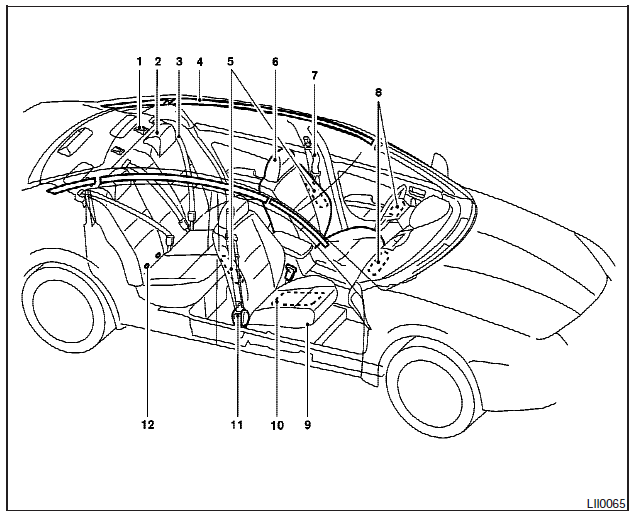

1. Top tether strap anchor.
2. Adjustable headrest.
3. Rear seat belts.
4. Roof-mounted curtain side-impact supplemental air bag.
5. Front seat-mounted side-impact supplemental air bags.
6. Head Restraints.
7. Front seat belts.
8. Supplemental front-impact air bags.
9. Seats.
10. Occupant classification sensor (pattern sensor).
11. Seat belts with pretensioners.
12. Latch (Lower Anchors and Tethers for CHildren) system.
See the page number indicated in parentheses for operating details.
