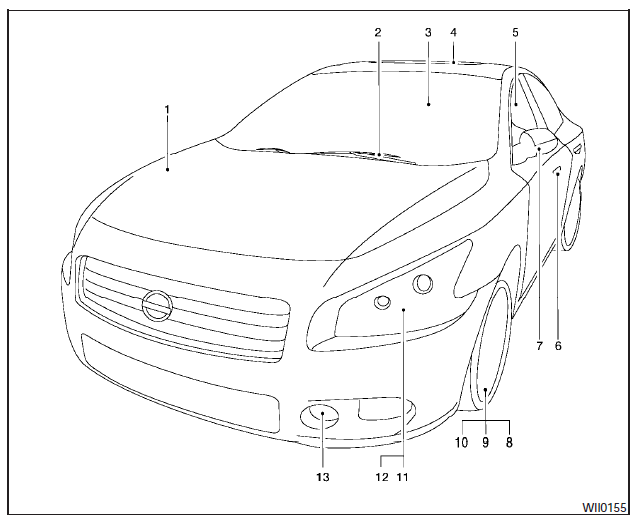

Exterior front
Exterior front
1. Engine hood.
2. Windshield wiper and washer switch.
3. Windshield.
4. Moonroof (if so equipped).
5. Power windows.
6. Door locks, Nissan Intelligent Key, keys, request button.
7. Mirrors.
8. Tire pressure.
9. Flat tire.
10. Tire chains.
11. Headlight and turn signal switch.
12. Replacing bulbs.
13. Fog light switch (if so equipped).
See the page number indicated in parentheses for operating details.
