Engine compartment check locations

Engine compartment check locations
Engine compartment check locations

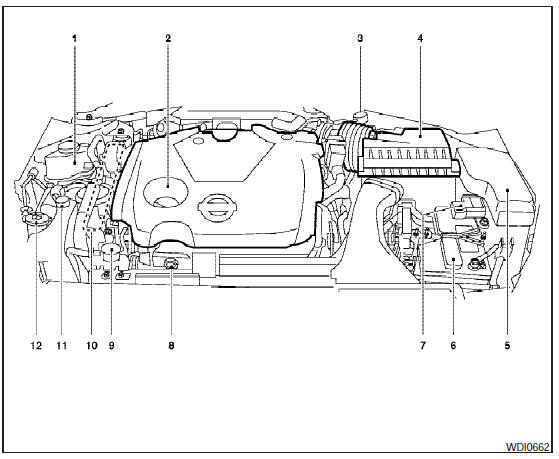

1. Power steering fluid reservoir.

2. Engine oil filler cap.

3. Brake fluid reservoir.

4. Air cleaner.

5. Fuse block.

6. Battery.

7. Fuse/fusible link box.

8. Engine oil dipstick.

9. Radiator cap.

10. Drive belt location.

11. Engine coolant reservoir *.

12. Window washer fluid reservoir *.

NOTE:

* Side covers removed for clarity.

See the page number indicated in parentheses for operating details.
