Engine coolant temperature gauge

Engine coolant temperature gauge
Engine coolant temperature gauge

The gauge indicates the engine coolant temperature.

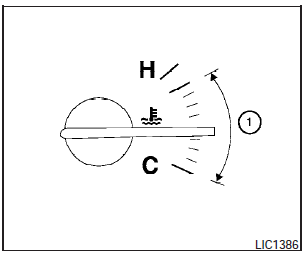

The engine coolant temperature is within the normal range when the gauge needle points within the zone shown in the illustration.

The engine coolant temperature varies with the outside air temperature and driving conditions.

CAUTION If the gauge indicates coolant temperature near the hot (H) end of the normal range, reduce vehicle speed to decrease temperature. If the gauge is over the normal range, stop the vehicle as soon as safely possible. If the engine is overheated, continued operation of the vehicle may seriously damage the engine.

See If your vehicle overheats in the In case of emergencysection for immediate action required.
