Console box

Upper half
Upper half

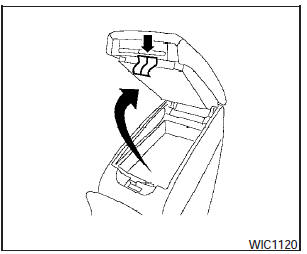

Pull up on the drivers side latch to open the upper half of the console box.

The upper half of the console box may be used for storage of cellular phones. An access hole is provided at the front of the upper half of the console box for a phone or iPodT cord routing to the power outlet.

Lower half
Lower half

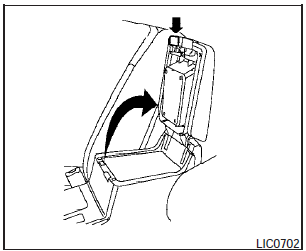

Pull up on the lever to open the lower half of the console box. A power outlet is located inside the console box and there is storage for compact discs.
