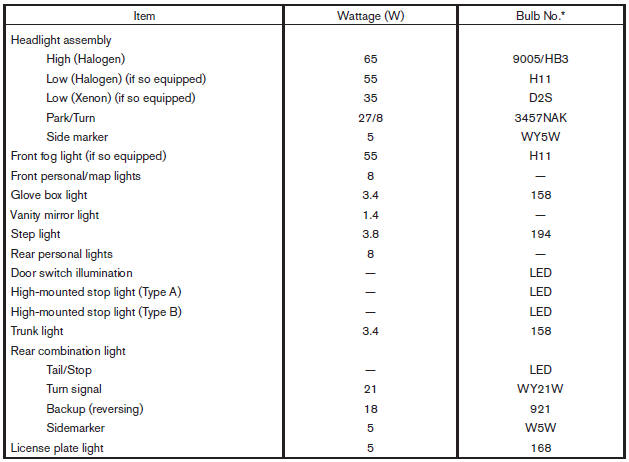

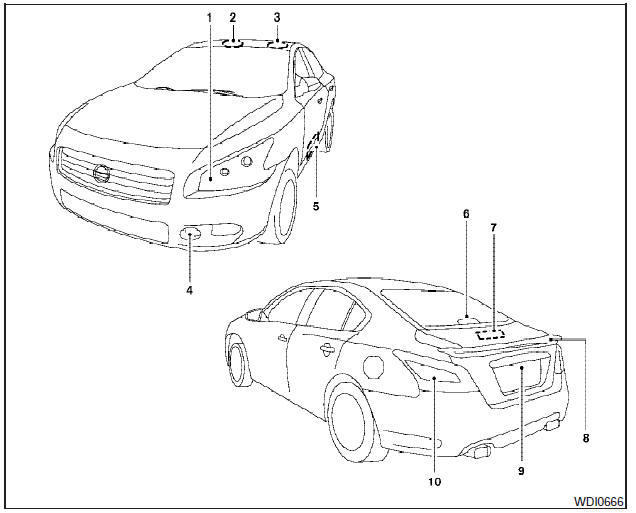

Exterior and interior lights
* Always check with the Parts Department at a NISSAN dealer for the latest parts information.
1. Headlight assembly.
2. Map light.
3. Rear personal lights.
4. Fog light (if so equipped).
5. Step light.
6. High-mounted stop light (Type A).
7. Trunk light.
8. High-mounted stop light (Type B).
9. License plate light.
10. Rear combination light.
Replacement procedures

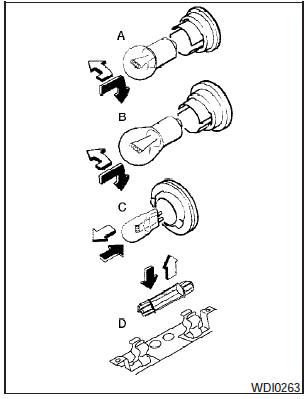

All other lights are either type A, B, C or D. When replacing a bulb, first remove the lens, lamp and/or cover.
Indicates bulb removal.
Indicates bulb installation.

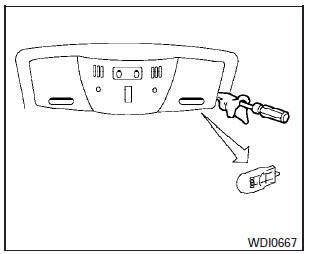

Front personal/map lights
Use a cloth (1) to protect the housing.

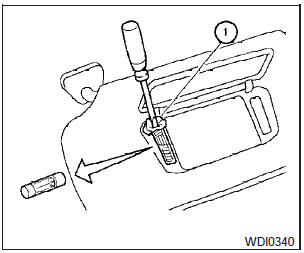

Vanity mirror light
Use a cloth (1) to protect the housing.

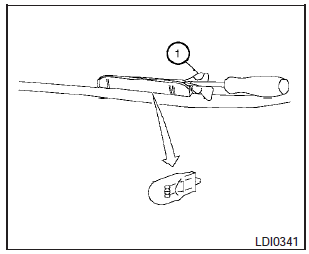

Step light
Use a cloth (1) to protect the housing.

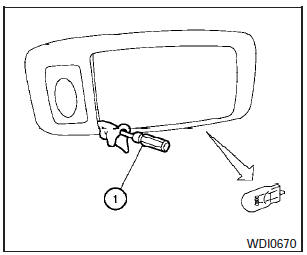

Rear personal light
Use a cloth (1) to protect the housing.

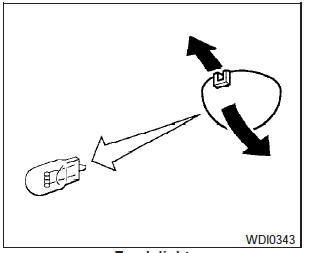

Trunk light
