Installing front license plate

Use the following steps to mount the front license

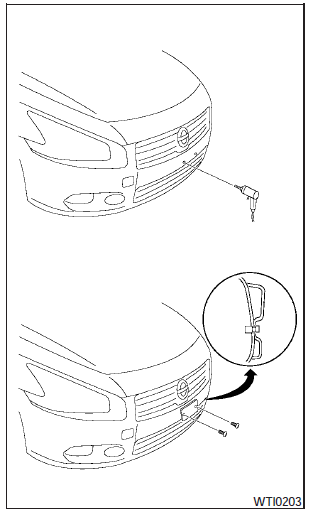

Use the following steps to mount the front license plate:

(1) Make holes on the plastic finisher at the location mark (small dimple) using a 0.31 in (8 mm) drill. Apply light pressure to the drill.

Install the license plate holder using the two screws provided with the holder.

 (2)- Mount the license plate using two M6- 14mm bolts.

License plate bolt tightening torque:

3.8 - 4.7 ft-lb (5.10 - 6.37 N·m)
