Replace the battery in the Intelligent Key as follows:

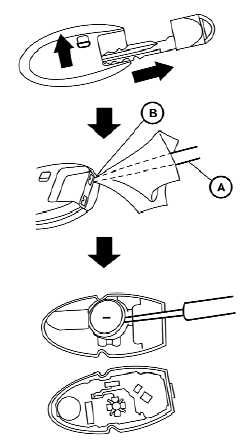

1. Remove the mechanical key from the Intelligent Key.

2. Insert a small screwdriver A into the slit B of the corner and twist it to separate the upper part from the lower part. Use a cloth to protect the casing.

3. Replace the battery with a new one. Recommended battery: CR2032 or equivalent.

● Do not touch the internal circuit and electric terminals as doing so could cause a malfunction.

● Hold the battery by the edges. Holding the battery across the contact points will seriously deplete the storage capacity.

● Make sure that the + side faces the bottom of the case.

4. Close the lid securely as illustrated C D .

5. Operate the buttons to check the operation.

See a NISSAN dealer if you need assistance for replacement.

FCC Notice:

For USA:

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

For Canada:

This device complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
