Nissan Versa: Illustrated table of contents - Engine compartment check locations

Keep your Nissan Versa running efficiently by performing routine fluid checks. Under the hood, you will find a highly accessible layout designed for quick self-service and professional maintenance:

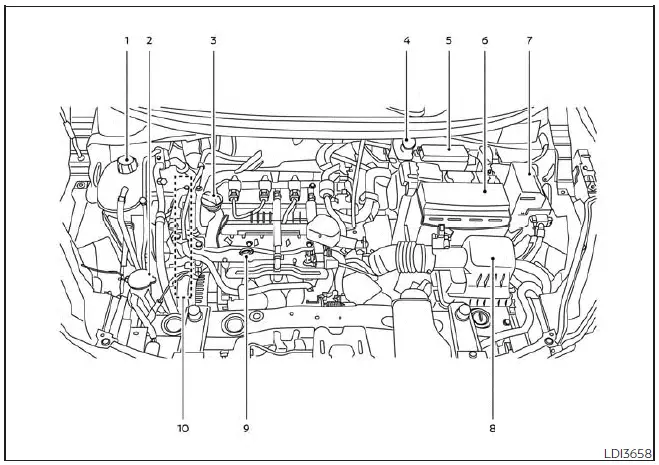

1.6L 4-cylinder (Efficient and reliable HR16DE engine model)

1. Engine coolant reservoir with clear min/max level markings
2. Windshield-washer fluid reservoir neck for easy top-offs
3. Engine oil filler cap conveniently located on top of the valve cover
4. Brake and clutch (if so equipped with a manual transmission) fluid reservoir
5. Main fuse and high-current fusible link box
6. 12-volt battery with easily accessible positive and negative terminals
7. Secondary engine compartment fuse box for auxiliary systems
8. Air cleaner assembly containing the engine intake air filter
9. Engine oil dipstick with bright handle indicator for quick oil level checks
10. Engine accessory drive belt location (easy visual inspection for wear or tension)

NOTE: Your Nissan Versa may or may not be equipped with a decorative plastic engine cover depending on the trim package and manufacturing configuration.
