Air flow charts

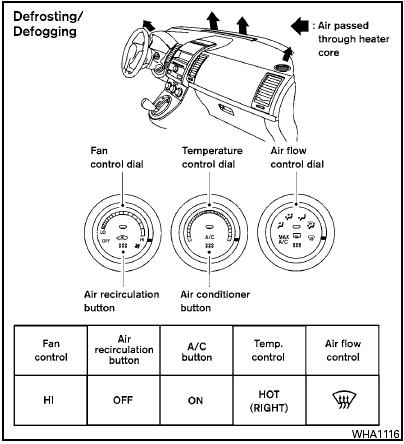

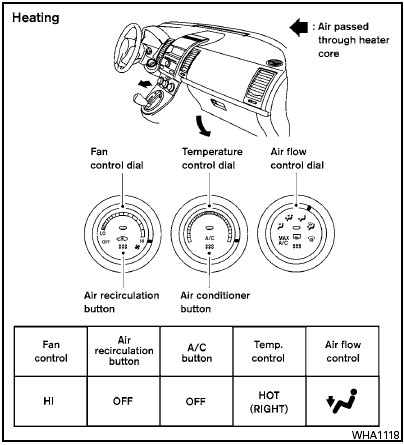

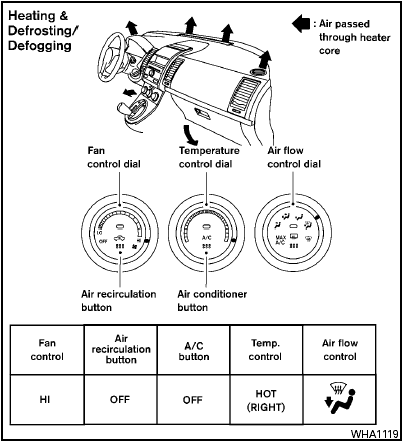

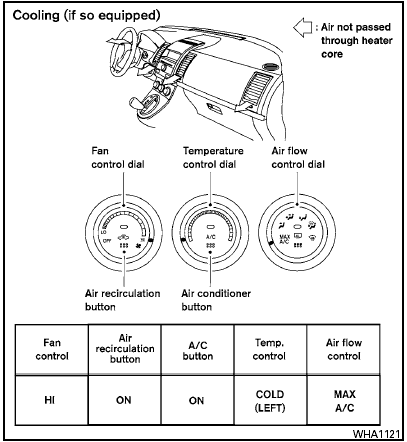

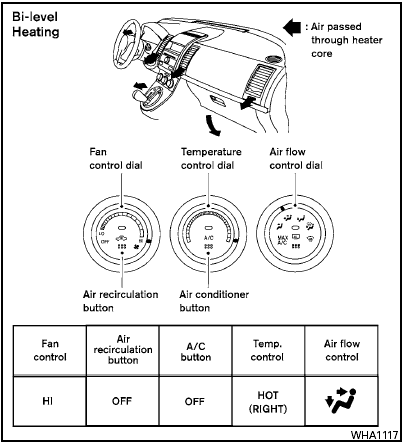

The following charts show the button and dial positions for MAXIMUM AND QUICK heating, cooling or defrosting. The air recirculation button should always be in the OFF position for heating and defrosting.

Servicing air conditioner (if so equipped)
