WARNING:

If the head restraint was removed, reinstall and properly adjust the head restraint before an occupant uses the seating position. Failure to follow these instructions can reduce the effectiveness of the head restraints. This may increase the risk of serious injury or death in a collision.

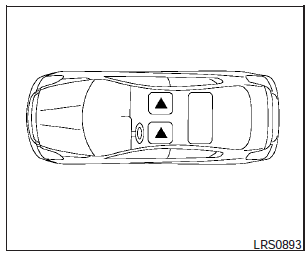

The illustration shows the seating positions equipped with head restraints. All of the head restraints are adjustable.

- Indicates the seating position is equipped with a head restraint.

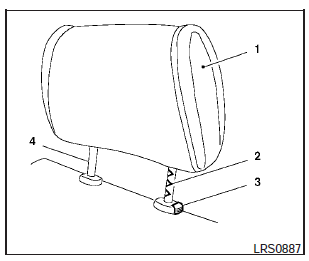

Components

1. Head restraint.

2. Adjustment notches.

3. Lock knob.

4. Stalks.

Adjustment

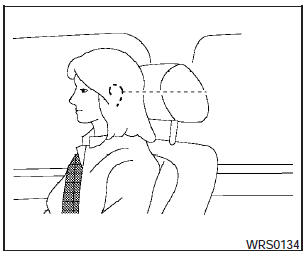

Adjust the head restraint so the center is level with the center of the seat occupants ears.

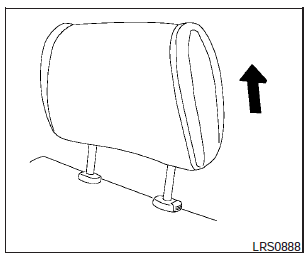

To raise the head restraint, pull it up.

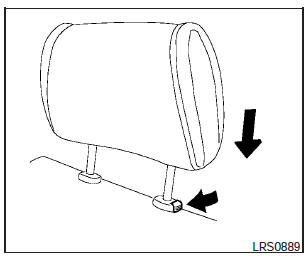

To lower, push and hold the lock knob and push the head restraint down.

Removal

Use the following procedure to remove the adjustable head restraints.

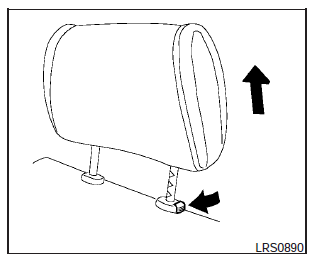

1. Pull the head restraint up to the highest position.

2. Push and hold the lock knob.

3. Remove the head restraint from the seat.

4. Store the head restraint properly so it is not loose in the vehicle.

5. Install and properly adjust the head restraint before an occupant uses the seating position.

Install

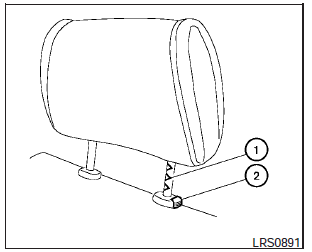

1. Align the head restraint stalks with the holes in the seat. Make sure the head restraint is facing the correct direction. The stalk with the adjustment notchess 1 must be installed in the hole with the lock buttons 2 .

2. Push and hold the lock knob and push the head restraint down.

3. Properly adjust the head restraint before an occupant uses the seating position.

Front-seat Active Head Restraints

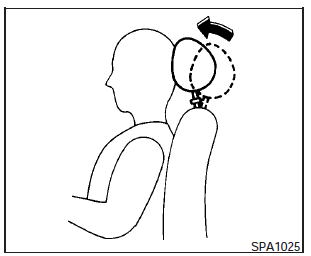

The Active Head Restraint moves forward utilizing the force that the seatback receives from the occupant in a rear-end collision. The movement of the head restraint helps support the occupant s head by reducing its backward movement and helping absorb some of the forces that may lead to whiplash-type injuries.

Active Head Restraints are effective for collisions at low to medium speeds in which it is said that whiplash injury occurs most.

Active Head Restraints operate only in certain rear-end collisions. After the collision, the head restraints return to their original position.

Adjust the Active Head Restraints properly as described in this section.
