Automatic operation (if so equipped)
Tilt operation

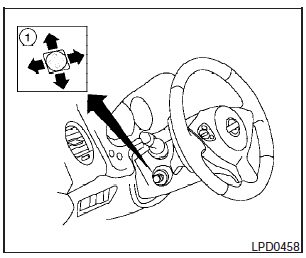

Push the switch (1) up or down to adjust the steering wheel to the desired position.
Entry/Exit function
The automatic drive positioner system will make the steering wheel move up automatically when the drivers door is opened and the ignition switch is in the LOCK position. This lets the driver get into and out of the seat more easily. The steering wheel moves back into position when the drivers door is closed and the ignition switch is pushed.
For more information, see Automatic drive positioner in this section.
Telescopic operation
Push the switch (1) forward or backward to adjust the steering wheel to the desired position.
