Manual operation (if so equipped)
Tilt and telescopic operation

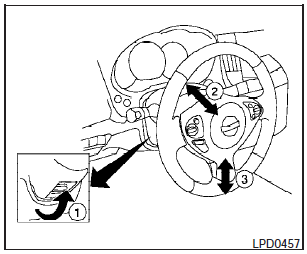

Pull the lock lever (1) all the way towards you:
- Adjust the steering wheel forward or backward in direction (2)- to the desired position.
- Adjust the steering wheel up or down in direction (3)- to the desired position.
Lock the steering wheel by releasing the lock lever. Make sure the lock lever has returned to its original position to lock the steering wheel in place.
WARNING:
Do not adjust the steering wheel while driving. You could lose control of your vehicle and cause an accident.
