Automatic anti-glare rearview mirror

The inside mirror is designed so that it automatically dims during night time conditions and according to the intensity of the headlights of the vehicle following you. The automatic anti-glare feature is activated when the ignition switch is placed in the ON position.

Do not hang any objects over the sensors (1) or apply glass cleaner to the sensors.

Doing so will reduce the sensitivity of the sensors, resulting in improper operation.

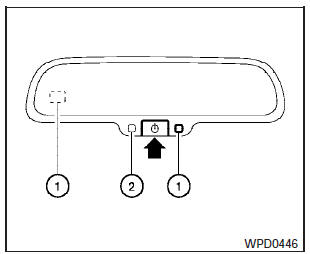

Type A
Type A

Type A

The indicator light (2)- will illuminate when the automatic anti-glare feature is operating.

With the ignition switch placed in the ON position, press the - To turn off the anti-glare feature, pressbutton as described:

- To turn off the anti-glare feature, press the will turnbutton. The indicator light will turn off.

- To turn on the anti-glare feature, press the lightbutton again. The indicator light will turn on.

For information on the compass display (if so equipped), see Compass display in the Instruments and controls section of this manual.

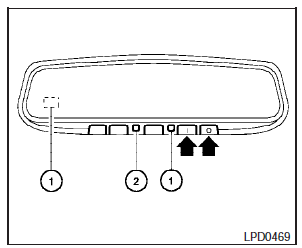

Type B-Without compass
Type B-Without compass

Type B and Type C

The indicator light (2)- will illuminate when the automatic anti-glare feature is operating.

To turn off the automatic anti-glare feature, press:

- the mirrors without button for inside mirrors without compass.

- the withbutton for inside mirrors with compass.

The indicator light will turn off.

Type C-With compass
Type C-With compass

To turn on the automatic anti-glare feature again, press:

- the mirrors without button for inside mirrors without compass.

- the mirrors with button for inside mirrors with compass.

The indicator light will turn on.

Some vehicles are also equipped with automatic anti-glare outside mirrors. For additional information, see Automatic anti-glare outside mirrors in this section.

For information on HomeLink Universal Transceiver operation, see the HomeLink Universal Transceiver in the Instruments and controls section of this manual.

For information on the compass display (if so equipped), see Compass display in the Instruments and controls section of this manual.
