Vents

Center
Adjust air flow direction by moving the vent slides.
Open or close the vents by using the dial. Move
the dial toward the
to open
the vents or
toward the
to close them.

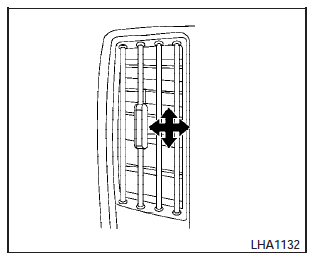

Side

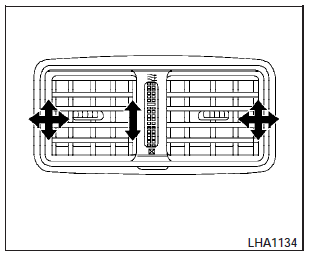

Rear
