Changing engine oil

1. Park the vehicle on a level surface and apply

1. Park the vehicle on a level surface and apply the parking brake.

2. Start the engine and let it idle until it reaches operating temperature.

3. Turn the engine off and wait more than 10 minutes.

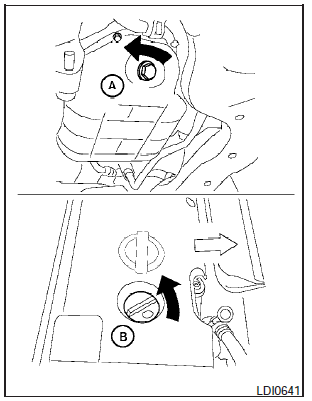

4. Place a large drain pan under the drain plug (A) (under the body).

5. Remove the oil filler cap (B)- (inside the engine compartment) by turning it counterclockwise.

6. Remove the drain plug (A) with a wrench by turning it counterclockwise and completely drain the oil.

If the oil filter is to be changed, remove and replace it at this time. See Changing engine oil filter later in this section.

- Waste oil must be disposed of properly.

- Check your local regulations.

WARNING:

- Prolonged and repeated contact with used engine oil may cause skin cancer.

- Try to avoid direct skin contact with used oil. If skin contact is made, wash thoroughly with soap or hand cleaner as soon as possible.

- Keep used engine oil out of reach of children.

CAUTION:

Be careful not to burn yourself. The engine oil may be hot.

7. Clean and reinstall the drain plug and a new washer. Securely tighten the drain plug with a wrench. Do not use excessive force.

Drain plug tightening torque:

22 - 29 ft-lb (29 - 39 NВ·m) 8. Refill engine with recommended oil through the oil filler opening, then install the oil filler cap securely.

See Capacities and recommended fuel/lubricants in the Technical and consumer information section of this manual for drain and refill capacity.

The drain and refill capacity depends on the oil temperature and drain time. Use these specifications for reference only. Always use the dipstick to determine when the proper amount of oil is in the engine.

9. Start the engine. Check for leakage around the drain plug and oil filter. Correct as required.

10. Turn the engine off and wait more than 10 minutes. Check the oil level with the dipstick.

Add engine oil if necessary.
