Nissan Versa: Do-it-yourself - Engine compartment check locations

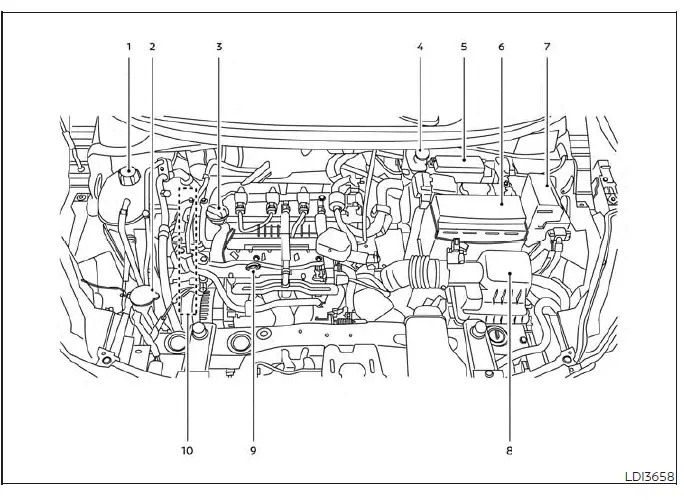

Top-down view of the 1.6L 4-cylinder HR16DE engine compartment layout in a Nissan Versa

1.6L 4 cylinder (HR16DE engine model)

  1. Engine coolant reservoir
  2. Windshield-washer fluid reservoir
  3. Engine oil filler cap
  4. Brake and clutch (if so equipped) fluid reservoir
  5. Fuse and fusible link box
  6. Battery
  7. Fuse box
  8. Air cleaner housing
  9. Engine oil dipstick
  10. Accessory drive belt location

NOTE:

Your specific vehicle model trim may not be equipped with a decorative engine cover.
