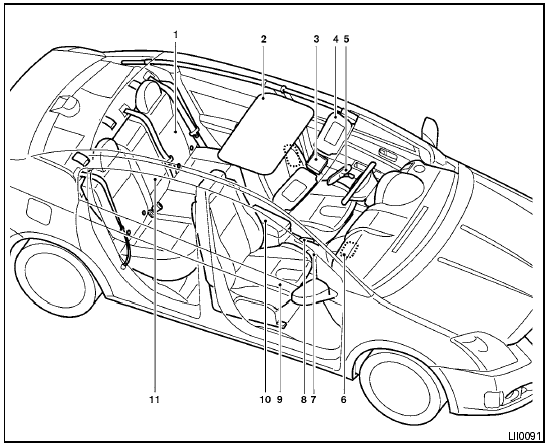

Passenger compartment

1. Rear seat
2. Moonroof (if so equipped)
3. Interior lights, illuminated entry, moonroof
switch (if so equipped)
4. Sun visors
5. Rearview mirror
6. Glove box
7. Cup holders
8. Parking brake, parking on hills
9. Front seat
10. Front console
11. Rear armrest, cup holders
(if so equipped)
