Seats, seat belts and Supplemental Restraint System

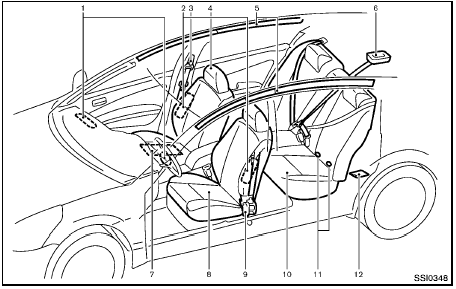

Seats, seat belts and Supplemental Restraint System (SRS)

1. Supplemental front-impact air bags
2. Front seat-mounted side-impact supplemental air bags
3. Seat belts
4. Head restraints
— Front-seat Active Head Restraints
5. Roof-mounted curtain side-impact and rollover supplemental air bags
6. Rear center seat belt
7. Occupant classification sensor (pattern sensor)
— Advanced air bag system
8. Front seats
9. Seat belt pretensioner
10. Rear seats
— Child restraints
11. LATCH (Lower Anchors and Tethers for CHildren) System
12. Child restraint anchor points (for top tether strap child restraint)
