Exterior and interior lights

*: See a NISSAN dealer for replacement.

*: See a NISSAN dealer for replacement.

NOTE: Always check with the Parts Department at a NISSAN dealer for the latest information about parts.

Replacement procedures

Replacement procedures

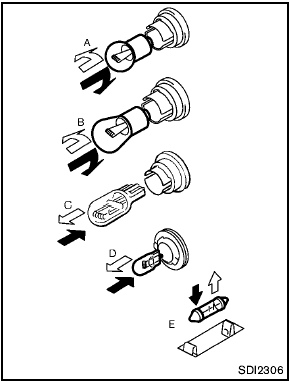

All other lights are either type A, B, C, D or E.

All other lights are either type A, B, C, D or E.

When replacing a bulb, first remove the lens and/or cover.

Front turn signal/park/side marker light (Halogen
Front turn signal/park/side marker light (Halogen headlight model)

Xenon headlight model: See a NISSAN dealer for replacement.

Halogen headlight model: Remove the bulb as illustrated.

Front fog light
Front fog light

Rear combination light (stop/tail/side marker/turn)
Rear combination light (stop/tail/side marker/turn)

Open the lift gate to remove the rear combination light assembly.

A : Clip

Back-up light
Back-up light

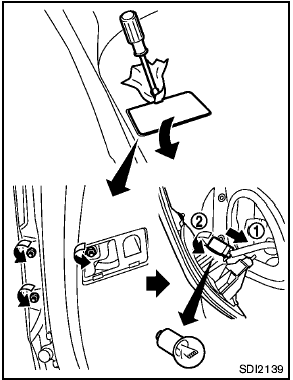

Open the lift gate to remove the back-up light assembly. One screw is located behind the cover on the lift gate.

License plate light
License plate light

The license plate light bulb can be accessed by removing the cover on the inside of the lift gate.

Front map light
Front map light

Cargo light
Cargo light

Ceiling light
Ceiling light

Vanity mirror light
Vanity mirror light
