CD care and cleaning

-Handle a CD by its edges. Do not bend the

-Handle a CD by its edges. Do not bend the disc. Never touch the surface of the disc.

- Always place the discs in the storage case when they are not being used.

- To clean a disc, wipe the surface from the center to the outer edge using a clean, soft cloth. Do not wipe the disc using a circular motion.

- Do not use a conventional record cleaner or alcohol intended for industrial use.

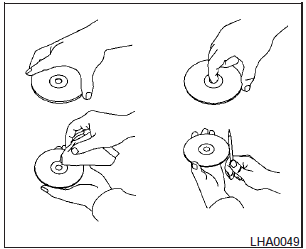

- A new disc may be rough on the inner and outer edges. Remove the rough edges by rubbing the inner and outer edges with the side of a pen or pencil as illustrated.

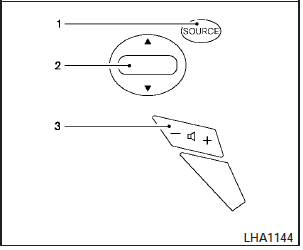

Type A
Type A

1. Power on and SOURCE select switch.

2. Tuning switch.

3. Volume control switch.

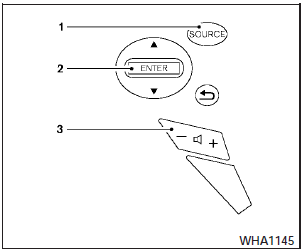

Type B
Type B

1. Power on and SOURCE select switch.

2. Menu control switch/ENTER button.

3. Volume control switch.
