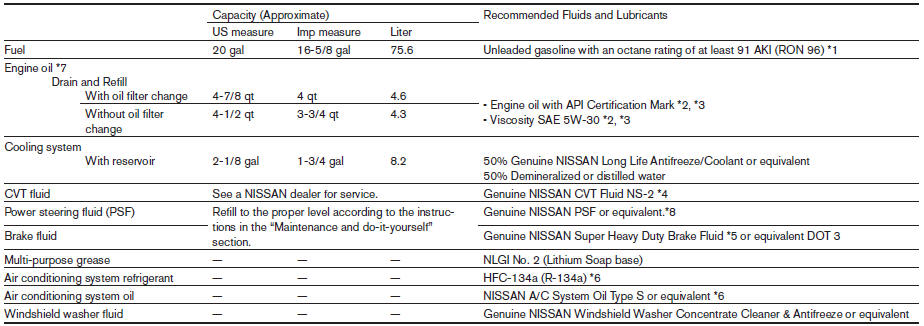

Capacities and recommended fuel/lubricants
The following are approximate capacities. The actual refill capacities may be slightly different. When refilling, follow the procedure described in the Maintenance and do-it-yourself section to determine the proper refill capacity.
Capacities and recommended fuel/lubricants
*1: For further details, see Fuel recommendation.
*2: For further details, see Engine oil and oil filter recommendation.
*3: NISSAN recommends Genuine NISSAN Ester Engine Oil available at your NISSAN dealer.
*4: Use only Genuine NISSAN CVT Fluid NS-2. Using transmission fluid other than Genuine NISSAN CVT Fluid NS-2 will damage the CVT, which is not covered by the NISSAN new vehicle limited warranty.
*5: Available in mainland USA through your NISSAN dealer.
*6: For further details, see Air conditioner system refrigerant and oil recommendations.
*7: For further details, see Engine Oil in the Maintenance and do-it-yourself section of this manual.
*8: DEXRON? VI type ATF may be used.
