Meters and gauges
Meters and gauges

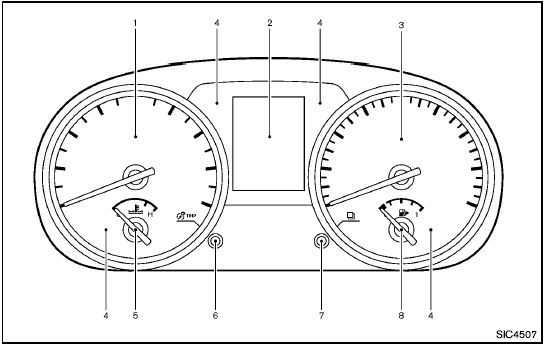

1. Tachometer
2. Vehicle information display
3. Speedometer
4. Warning/indicator lights
5. Engine coolant temperature gauge
6. switch (twin trip odometer
control and brightness control)
7. switch (settings control and
trip computer control)
8. Fuel gauge
The needle indicators may move slightly after the ignition switch is turned to the LOCK position. This is not a malfunction.
