Passenger compartment

CAUTION

CAUTION

Never use a fuse of a higher or lower amperage rating than specified on the fuse box cover. This could damage the electrical system or cause a fire.

If any electrical equipment does not operate, check for an open fuse.

1. Be sure the ignition switch and the headlight switch are OFF.

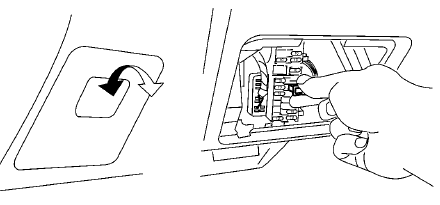

2. Pull the fuse box cover to remove.

3. Remove the fuse with the fuse puller.

Type A

Type A

4. If the fuse is open A , replace it with an equivalent good fuse B .

5. Push the fuse box cover to install.

6. If a new fuse also opens, have the electrical system checked and repaired by a NISSAN dealer.

Type B

Type B
